DMIX  DM-8000series

Digital discussion conference system

The all-digital conference host is the core part of the all-digital conference system, which integrates multiple technologies such as simultaneous transmission, voting, microphone management, display unit, camera tracking, tea application, internal call, and short message.

      Host features:


      ● Super five types of line shielding line, 100M network full digital audio and control signal transmission, long-distance transmission sound quality is not affected;

      ● Built-in high-performance CPU, set translation, discussion, sign-in, voting, electronic nameplate as one, to provide high-speed voting, voting, information transmission, maximum support 4000 conference units;

      ● Maximum open 8 microphones at the same time, 15+1 simultaneous interpretation;

      ● 48K sampling, bandwidth 20~20K perfect sound quality;

      ● Dual-system hot backup, any one of the dual hosts fails, the system can operate normally, the meeting will not be interrupted, continue to speak and vote.

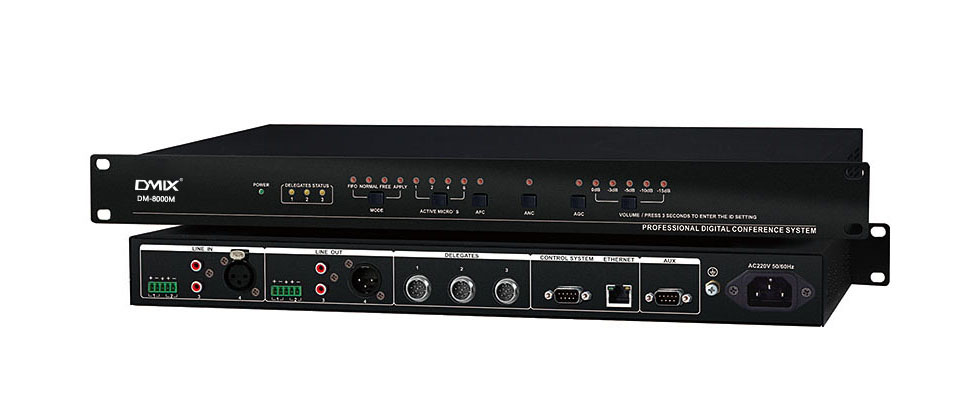

                              DM-8000M   Host machine

                                  Microphone features:

                                  ● Adopt ultra-short all-metal short bar design, fashion and generous, clear acquisition sound, support camera linkage tracking function.

                                  ● Mi core type capacitive core single-directional; Frequency response: 20HZ~20KHZ;

                                  ● The chair unit has a priority function, which can close all the representative units that are speaking;

                                  ● Comes with double network port design, can realize the unit hand in hand function;

                                  ● With 3.5MM headphone jack and volume adjustment knob;

                                  ● The chair unit has the priority to speak, and long press the microphone to turn off all representative units;

                                  ● High performance sound processing technology, high fidelity, zero delay, anti-interference;

                                  ● Power supply: host/power expansion box power supply, connection using CAT5/6 network cable, simple wiring, easy to install.

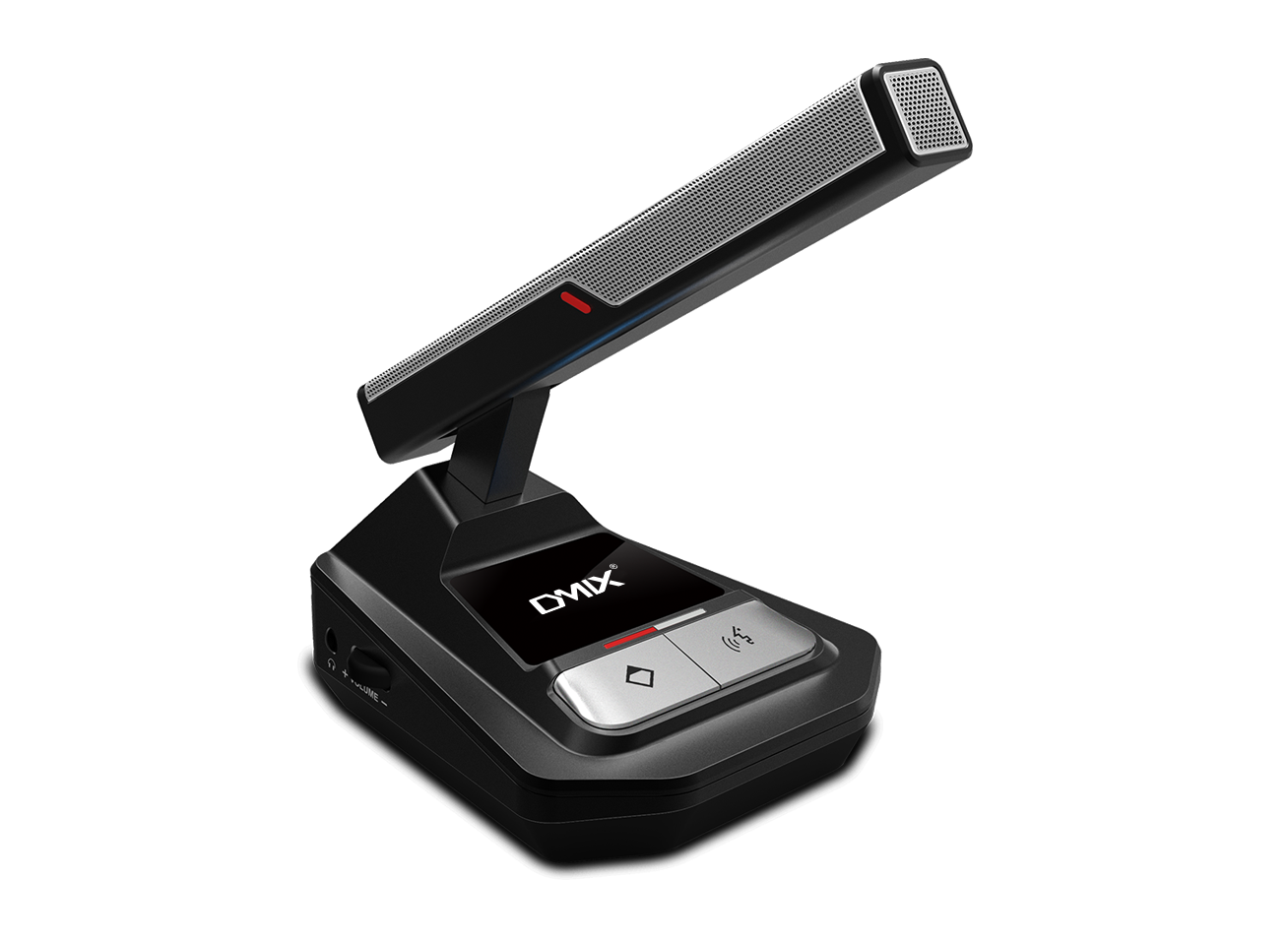

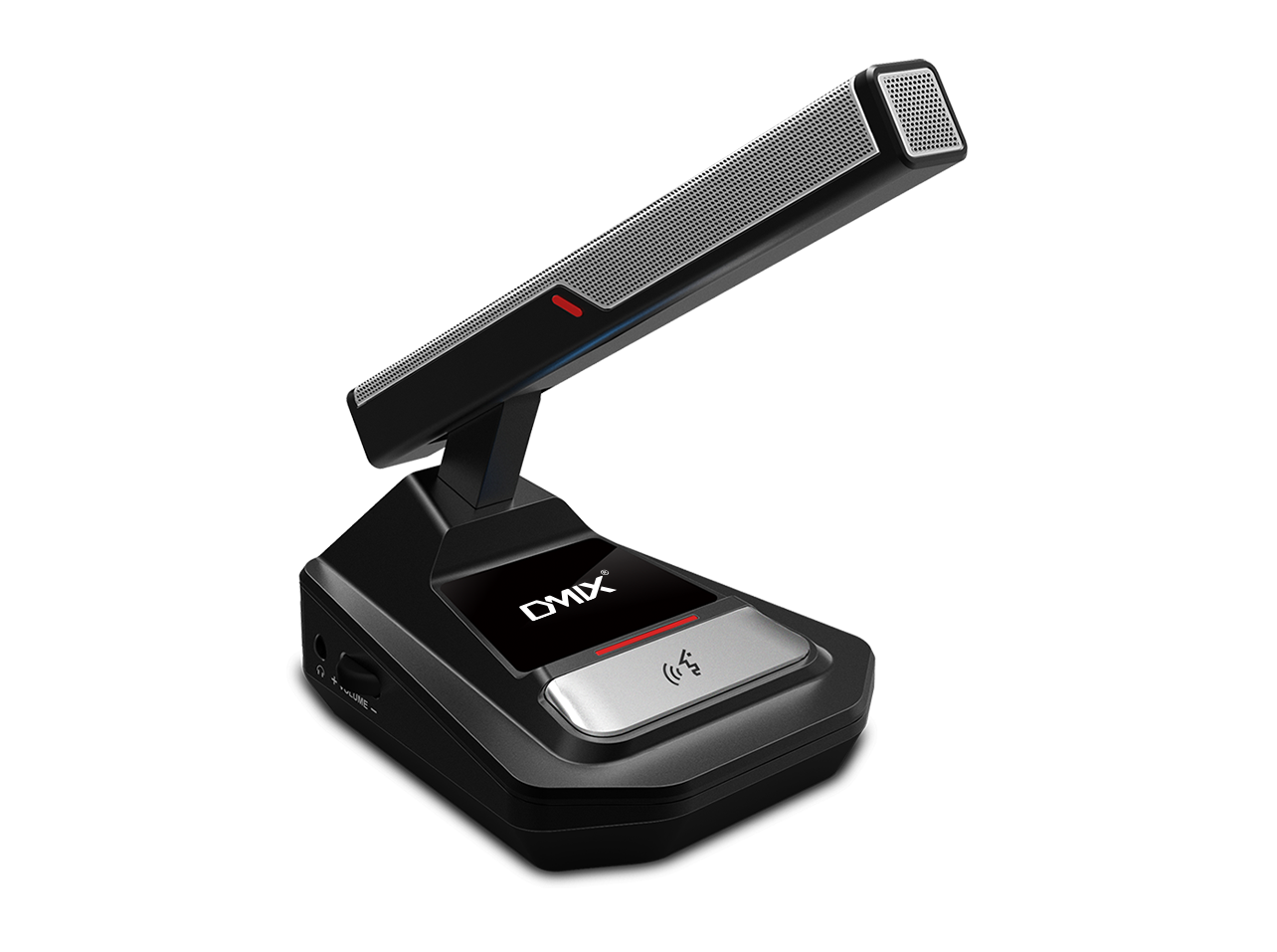

                                                          DM-8000C  /  DM-8000D
                                                          Chair unit/representative unit
                                                          Power supply to the host/power expansion box
                                                          20Hz~20KHz
                                                          > 80dB
                                                          < 0.05%
                                                          6W
                                                          80mW
                                                          Net interface
                                                          Dark grey
                                                          Hand in hand

                                                          Product model:
                                                          Product Type:
                                                          Power Supply:
                                                          Frequency response:
                                                          Signal to noise ratio:
                                                          Total harmonic distortion:
                                                          Maximum power consumption:
                                                          Earphone output power:
                                                          Unit interface:
                                                          Color:
                                                          Unit connection mode:

                                                          DM-8000C Chair cell

                                                          DM-8000D stands for cell

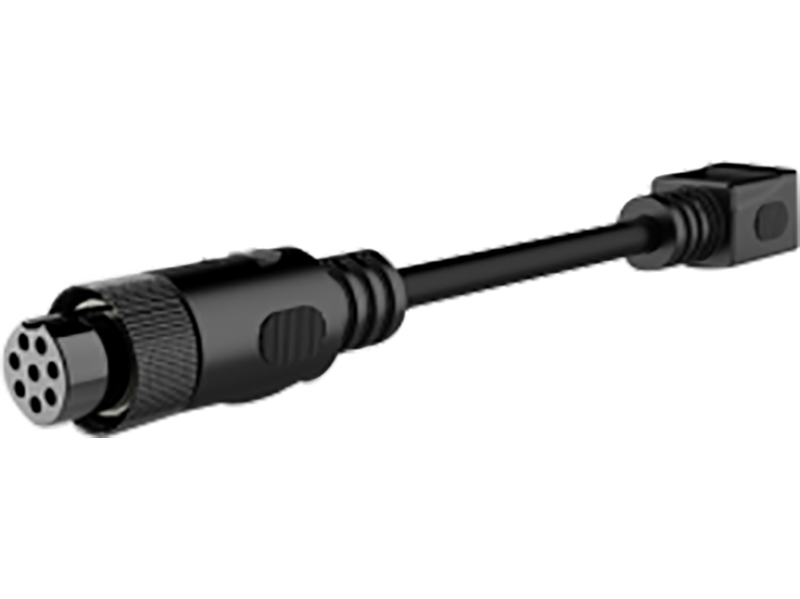

                                                          Conference converter DM-8T45-01 is a conference cable used with CAT5 conference unit or power extender, which can directly convert 8-core aviation line into CAT5 network for delayed transmission of conference unit.

                                                          DM-8T45-01   Conference switching line
