USB A:

Number of channels:

Sample rate:

Output:
搜索

32bit float
Max. 8 x 8
48kHz

Input:

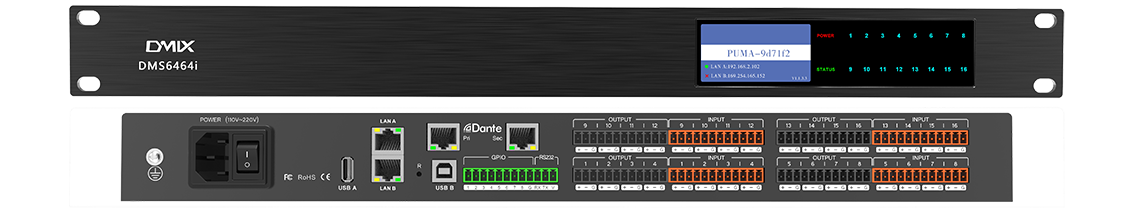

DMIX   DMS6464i

64x64 Dante dynamic digital audio processor

Freely designed audio processing and control system products. The front panel has its own HD color screen, which can display the current working status of the device. Advanced DSP processing technology is adopted. The system provides a variety of audio processing modules to choose from, and the open software architecture can solve various practical problems in application scenarios. 128 network audio channels, providing high bandwidth, low latency, high compatibility and low cost solutions for network audio transmission.

Advanced and reliable processors: NXP i.MX ARM and Analog Device high-performance DSP Sharc21569;
Network audio channel: 64x64 Dante, AES67 compatible;
Analog input/output: 16 microphone and line analog audio input, 16 line analog audio output;
Audio processing module: AEC and other processor modules, assignable, routable;
DANTE Backup: Independent Gigabit Ethernet port for Dante audio connection and backup;
Control backup: Independent 100 Mbit Ethernet port for control connection and backup;
USB sound card: 8x8 USB digital audio recording broadcast channel;
Other interface types: USB A interface, USB B interface, RS232 interface and 8 GPIO interfaces with free configuration of input and output;
Power supply: built-in special power module and 12V(500mA) DC external power supply;
Software control: Using D-NETWARE Designer software to configure, control and monitor the system through the network, support static address or automatic address allocation;
External control devices: compatible with existing and future accessories, such as touch panel, programmable knob panel, etc.
Product certification: CQC certification, in line with EU CE, RoHS standards.

+ / - 0.2 dB
0.003%, +18dBu maximum output stage
>100dB Typical, 90dB maximum
>108dB
100 Ω
18dBu/4dBu

Input frequency response:


Input total harmonic distortion + noise:

Equivalent input noise:

Interinput crosstalk:

Enter dynamic range:

Input common-mode noise suppression:

Input impedance (balanced) :

Input sensitivity range (3dB) :

Phantom Power Supply:

Sample rate:

AD/DA conversion:

20Hz-20kHz@ +18dBu, ±0.2dB

50Hz-20kHz@ +18dBu, ±0.1dB


< 0.003%
< -125dB
> 110dB Typical, maximum 100dB

> 110 dB@ +18dBu sensitivity


60dB@ +18dBu sensitivity
2.4kΩ nominal
-39dBu ~ +18dBu
+48V DC, input current up to 10mA
48kHz
24bit

Output frequency response:

Output total harmonic distortion:

Output crosstalk @1kHz:

Output dynamic range:

Output impedance (balanced) :

Output level range:

USB input and output:
Others:

Power consumption:

Weight/Size:

35W (nominal power), 65W (maximum power)
2.5kg / 44×483×260 mm
